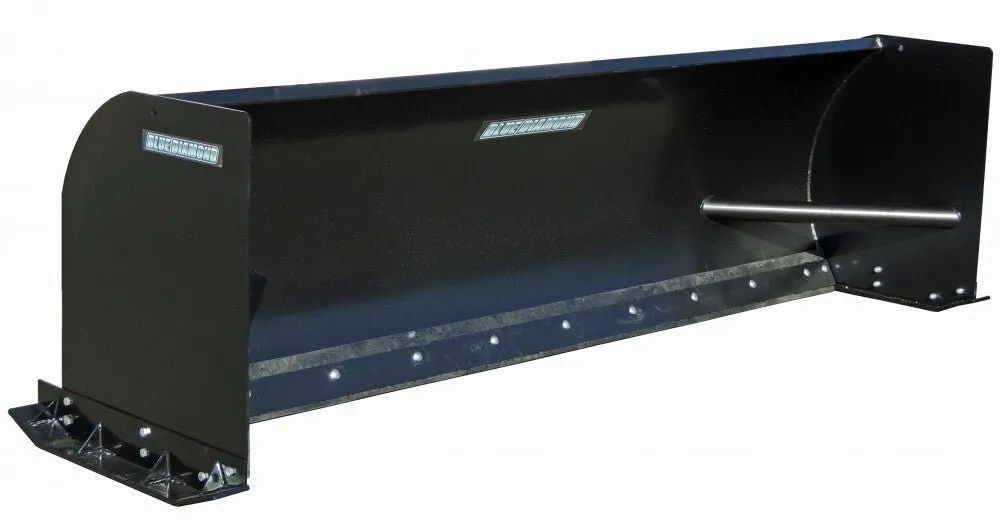

The Blue Diamond® Heavy Duty Snow Pusher offers excellent value for the light user to the commercial snow removal contractor.
It uses an adjustable rubber cutting-edge and bolt-on wear shoes made from AR400. The rolled moldboard keeps the snow load live to reduce the host machine horsepower needed to move large snow loads. The Heavy-Duty model uses thicker wear shoes, heavier side plates, and more cross braces than the Standard Duty model. A vertical brace ties the cross braces together to spread out the impact force on the Heavy-Duty unit.
FEATURES INCLUDE:
- 3 horizontal structural tubes from side to side
- 2 vertical reinforcement gussets to tie all 3 structural tubes together with the quick attach
- 3/4″ AR400 wear shoes
- 1/4″ side plates
- Rubber cutting edge
- Rolled moldboard to keep snow load live
- Pull-back option available
- Available in 72″ (665 lbs.), 96″ (770 lbs.), and 120″ (875 lbs.)
- Powder coated
| PART NUMBER | MODEL | WEIGHT |
|---|---|---|
| 120135 | 72” Snow Pusher, Heavy Duty | 624 lbs. |
| 120150 | 96” Snow Pusher, Heavy Duty | 770 lbs. |
| 120155 | 120” Snow Pusher, Heavy Duty | 839 lbs. |
| 120114 | 72” Snow Pusher, Pull Back Option, Standard/HD | 100 lbs. |
| 120117 | 96” Snow Pusher, Pull Back Option, Standard/HD | 132 lbs. |
| 120122 | 120” Snow Pusher, Pull Back Option, Standard/HD | 165 lbs. |
| 220330 | Optional Poly Skid Shoe (Req 2) | 14 lbs. |
